★ Specialized for greenhouse vent (Curtain) open and close;
★ Big torque capability;
★ Stable performance, the low failure rate;
★ Accurate limit control.
★ Specialized for greenhouse vent (Curtain) open and close;
★ Big torque capability;
★ Stable performance, the low failure rate;
★ Accurate limit control.
| Model | Power | Torque | Speed | Voltage(50Hz) | L | H | M |
| Standard | Kw | Nm | 500:1 | V | mm | mm | kg |
| 0.55 | 400 | 380,3-phase | 450 | 170 | 25.0 | ||

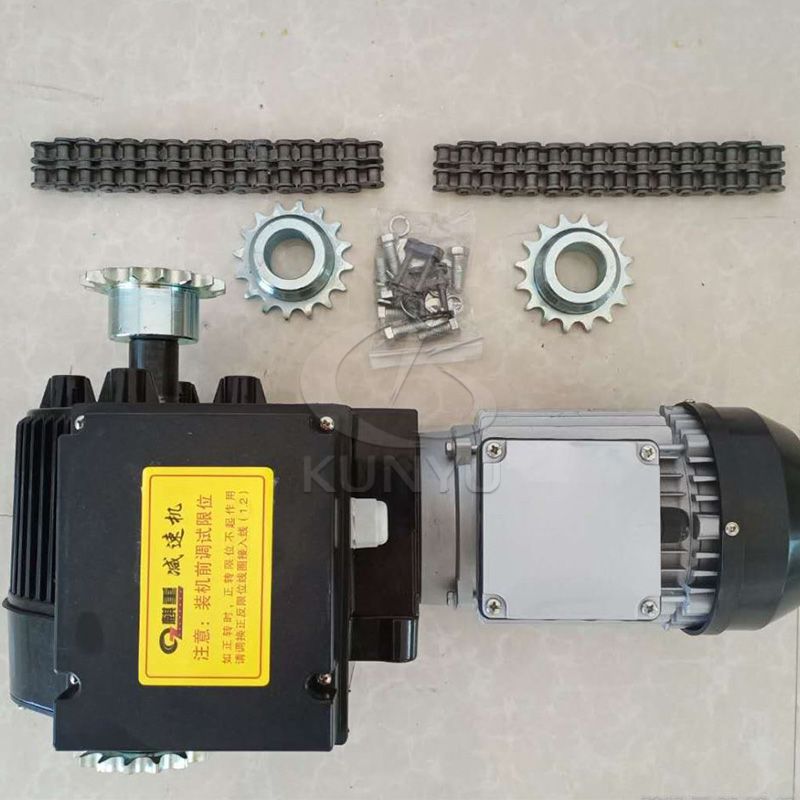

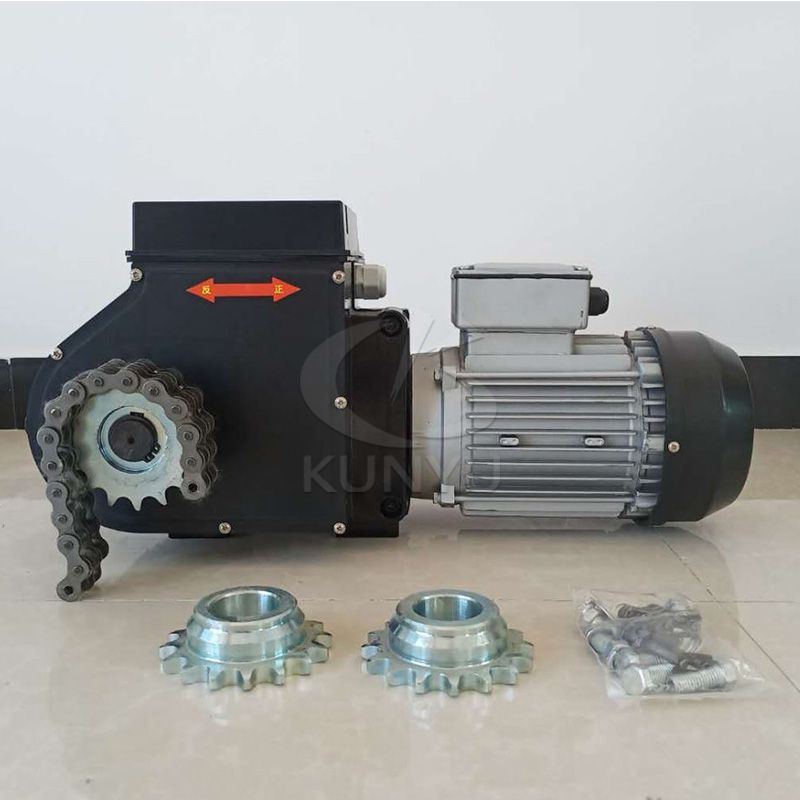

| Motor | Compact structure, reliable work, long life time, self-locking, built-in work limit and emergency limit switches, with two ends of output, with 16-toothed sprocket(5/8" ×3/8");built-in mounting bolts, insulation grade IP55. | ||||||
| Model | Voltage | Power | Torque | Current | Output Shaft Diameter | Connect Pipe Diameter | Weight |
| GMA550 | 380V | 0.55KW | 600N.m | 1.8A | Φ25 | Φ34 | 25kg |
| GMA750 | 380V | 0.75KW | 800N.m | 2.2A | Φ25 | Φ34 | 25kg |
| Motor: Compact structure, reliable work, long life time, self-locking, built-in work limit and emergency limit switches, with two ends of output, with 16-toothed sprocket(5/8" * 3/8");built-in mounting bolts, insulation grade IP55. | |||||||
